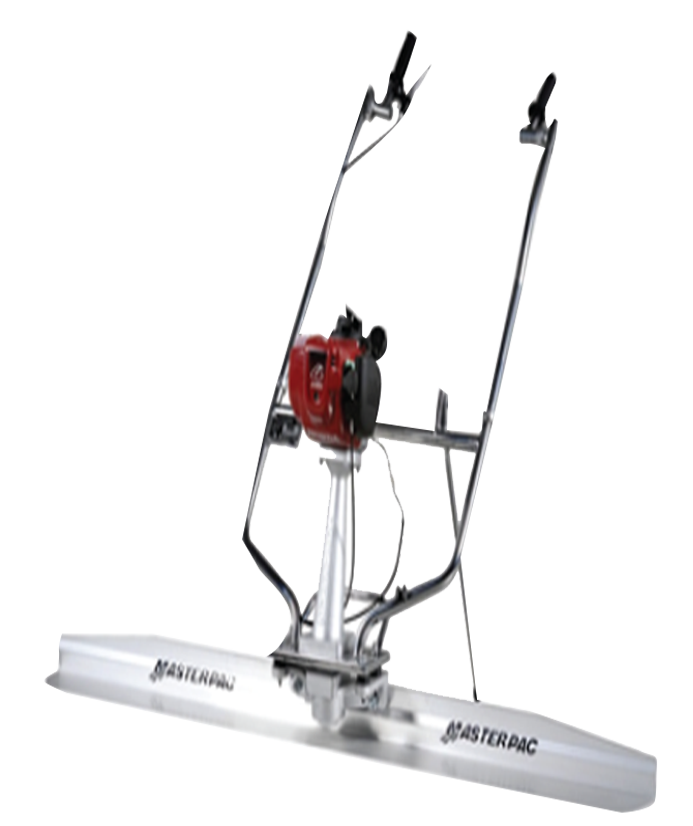

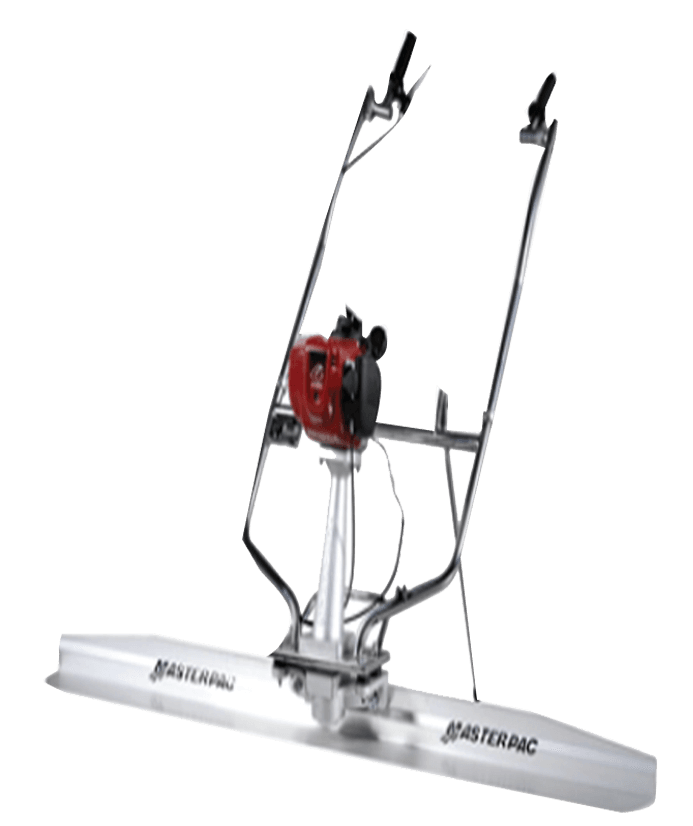

CONCRETE VIBRATING SCREED/UNI SCREED
The TEK-CVSH vibrating screed motor block for the Isoplam vibrating rod transmits vibrations to the ruler on which it is mounted, allowing quick and optimal leveling, smoothing, leveling and compaction of the concrete for floors. The practical double handlebar with ergonomic knobs on which it is mounted allows the operator to work with precision and easily standing up without tiring the back; the machinery for making the concrete vibrate is equipped with an accelerator on the handlebar and anti-vibration pads that protect the paver's arms from excessive stress. The comfortable handle makes the Isoplam dragonfly easy to move and transport, while the stand allows you to park the vibrating straight edge with stability. The Isoplam cement leveling machine isequipped with a lightweight (weighing only 13 kg) Honda GX-35 4-stroke petrol engine which guarantees optimal vibration with blades up to 4 meters. LIGHTWEIGHT CONCRETE VIBRATING SCREED Engine: Honda GX35 4 Stroke Power HP: 1.5 Weight KG: 12.7
- The tilt-up stand keeps the engine out of the concrete when not in use.
- Emergency stop switch.
- 7 di erent working widths: 1.2m, 1.8m, 2.4m,3.0m, 3.7m, 4.3m, 4.9m. (Blade not included)
- Blades easily changed.
| MODEL | TEK-CVSH | BEAM MODEL | Beam Length(Mtr) | Beam Weight(Kg) |
|---|---|---|---|---|
| Engine | Honda GX35 | TEK-CVSB 1 | 1 M | 6 |
| Engine Power(Hp/Kw) | 1.6./1/2 | TEK-CVSB 2 | 1.9 M | 8 |
| Engine Type | 4 Stroke | TEK-CVSB 3 | 3 M | 12.5 |
| Vibration Speed(VPM) | 7000 | TEK-CVSB 4 | 4 M | 17 |
| Weight(Kg) | 12.7 |
