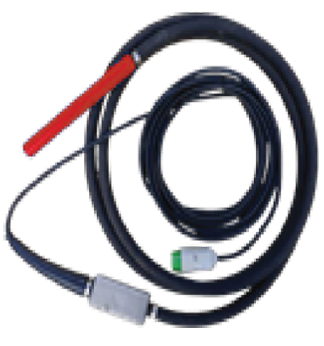

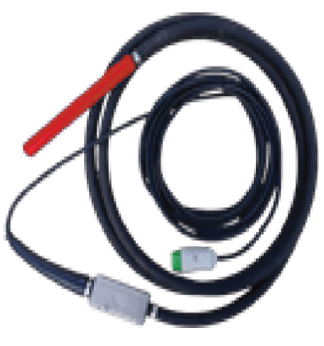

INTERNAL HIGH FREQUENCY POKERS

The TEKVIBE HF series is a reliable and robust poker designed for medium to high slump concrete. Thanks to our newly developed stators and rotors the TEKVIBE is great at both conserving energy and providing effective concrete vibration. The design also means reliable start-ups. An easy-to-use aluminum switchbox offers one-hand operation and reduced hand/arm vibration. That means you’ll be able to work longer without getting tired. And thanks to dual fiber layers in the hose and oil lubricated bearings in the poker, you get improved durability without the need for periodic maintenance. As for maintenance, our service-friendly design makes it really easy for you to replace bearings TEK-HF series could provide a 42V/3 phase 200Hz power, to drive a motor-in-head poker. It is the top level product for concrete vibrator. The eccentric block is equipped on the rotor directly, no any losses for transmission. So with a much lower power motor, it produces a high vibration on poker, it is the highest efficiency system for concrete vibrator

• User Instructions
• • Ensure that the supplied voltage from the converter corresponds with the poker vibrator’s technical data.
• • Ensure that the poker vibrator’s diameter corresponds with the consistency of the concrete.
• • Stick the vibrating poker head into the concrete and allow the vibrator to vibrate for 2 seconds in one place
• in the concrete, before moving it to the next spot. Repeat this procedure every 50 cm (depending on the concrete’s consistency).
