CONCRETE VIBRATORS & POKER SHAFTS

With displacement of 306cc, HL178FA delivers a maximum 6.0hp power output. Efficient air cleaner system ensures that
your equipment function at their peak performance when needed.
Direct injection combustion brings better fuel economic. Our engine are compact in structure and small in size. On top of
that, our diesel engine can be produced with multiple PTO shafts, suitable for various machines and equipment. Optional
electric start / oil bath air cleaner / Italian type muffler.

DIESEL VIBRATORS

The Portable Concrete Vibrator offers increased operator comfort, reliable performance, and reduces fatigue, without the use of
an electric cord. Honda’s 2.0 horsepower GX35 Mini-4 Stroke engine provides reliable power, with an all-position diaphragm
carburetor for operation in any position without stalling. It features an ergonomic and comfortable double-strap shoulder harness
and repositionable throttle control offering total operator comfort.
Honda’s GX35 general-purpose engine is the first Honda four-stroke model in the two-horsepower class that is 360-degrees
inclinable during operation and storage. The GX35 offers high output and light weight extending into more demanding commercial
and rental applications with excellent fuel efficiency.

PORTABLE HANDHELD CONCRETE VIBRATORS

Specifications
• Engine: 4 Stroke Honda 35CC
• 35% More Power
• Centrifugal Clutch
• Type: Hard Nose
• Flex shaft Length: 545mm
• Vibrator Head Diameter: 44mm
• Vibrator Head Length: 390mm
• Operating Weight: 13kg
• Shaft Inner Core Diameter: 7.5mm
Amplitude in Air: 2.8mm •
Max Rated Power: 1.5h •

Flexible shaft mechanical poker vibrators for high vibration power in concrete and designed to meet the toughest site
conditions. Available with a wide range of poker diameters from 25 to 68mm

MECHANICAL POKER SHAFT(PIN/COUPLING)

The Poker Vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar,
especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected
from the four available products.

HIGH SPEED ELECTRICAL VIBRATORS

The machine is perfect if you are pouring columns and beams, footings or other form work. It is easy to use by lowering the poker to the bottom of the pour and gradually working your way up to the surface working it slowly back and forth until all the air has been removed.

Robin /Hondaengine Concrete vibrator, work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high-level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.

PETROL VIBRATORS

HIGH FREQUENCY POKERS & CONVERTORS

Electric frequency converters and engine driven generators have several advantages. To begin with they can supply several pokers with power simultaneously. The electric rotary frequency converters come with 1,2 or 4 outlets and our generators are available with 2, 3 or 4 outlets. Robust construction and splash protection prolong lifetime

TEK-HFC SERIESHIGH FREQUENCY CONVERTORS

oscar
High Frequency Concrete Vibrator
OSCAR is an electronic converter that could provide a 3 phase 200Hz power, to drive a motor-in-head poker. It is the top level product for concrete vibrator. The eccentric block is equipped on the rotor directly, no any losses for transmission. So with a much lower power motor, it produces a high vibration on poker, it is the highest efficiency system for concrete vibrator.

HF Pokers with Inbuild Convertors

The TEKVIBE HF series is a reliable and robust poker designed for medium to high slump concrete. Thanks to our newly developed stators and rotors the TEKVIBE is great at both conserving energy and providing effective concrete vibration. The design also means reliable start-ups. An easy-to-use aluminum switchbox offers one-hand operation and reduced hand/arm vibration. That means you’ll be able to work longer without getting tired. And thanks to dual fiber layers in the hose and oil lubricated bearings in the poker, you get improved durability without the need for periodic maintenance. As for maintenance, our service-friendly design makes it really
easy for you to replace bearings TEK-HF series could provide a 42V/3 phase 200Hz power, to drive a motor-in-head poker. It is the top level product for concrete vibrator. The eccentric block is equipped on the rotor directly, no any losses for transmission. So with a much lower power motor, it produces a high vibration on poker, it is the highest efficiency system for concrete vibrator

INTERNAL HIGH FREQUENCY POKERS

INDUSTRIAL VIBRATORS AND CONVERTORS

HIGH FREQUENCY MOLD EXTERNAL VIBRATORS (APV SERIES)

PV-A series products are especially for gross concrete applications; It is an ideal vibration motor developed for the compression of soft concrete
in which plywood and steel molds, curtain concrete, viaducts and similar iron reinforcement is dense without segregation.

SHUTTER VIBRATORS ( PV-A VARIABLE FREQUENCY HIGH FREQUENCY MOTOR)

PV-A 50 Hz - 3000 rpm / 200 Hz 6000 rpm

It is used for compacting fresh, reliable, long-lasting, comfortable and problem-free concrete.

PNEUMATIC MOLD EXTERNAL VIBRATORS(PVM SERIES)

• It can be fixed with the several concrete casts. Its vibration places the daub and prevents the spaces which could be exist in the concrete.
• It can be fixed with the plate bunkers, so it helps the permanence of flow of the commodity.
• It can be fixed with the air transportation band conveyors. It improves the performance of the band.
• It can be used with sieve companies which arrange sand, gravel and aggregate.

• With its current protection, it provides complete protection against high and low voltage short circuit and overheating.
• There is no need for mandatory maintenance and similar service in mechanical converters, it works for many years without any problems.
• It operates at very low volume and does not produce any noise.
• It is lightweight and ergonomic without any alternative, it can be quickly moved between the molds in the work area.
•It can be operated at different frequencies between 0 and 200 Hz, so it extends the economic life of the molds by preventing unneces- sary high vibration
on concrete molds.
• Our converters are fixed at certain points, providing the advantage of use with energy distribution panels.

HIGH FREQUENCY ELECTRONIC CONVERTOR

BFC - Elektronik Frekans Konvertorleri - Variable Electronical Frequency Converters

POWER FLOAT/ RIDE ON TROWELS

TEK900V
Application

Trowels feature high quality finishing plus triple protection Designed and built with the most advanced technology, H-Power's walk-behind trowels offer high quality concrete finishing plus added operator safety. The patent-pending gearbox brake, gyroscopic safety sensor and engine speed limiter provide triple protection for the operator. This unique system minimizes a runaway handle situation and meets worldwide safety requirements.

POWER FLOAT MACHINE

TEK600V
Trowels feature high quality finishing plus triple protection Designed and built with the most advanced technology, H-Power's walk-behind trowels offer high quality concrete finishing plus added operator safety. The patent-pending gearbox brake, gyroscopic safety sensor and engine speed limiter provide triple protection for the operator. This unique system minimizes a runaway
handle situation and meets worldwide safety requirements.

POWER FLOAT MACHINE FOR EDGES

The TEK-CVSH vibrating screed motor block for the Isoplam vibrating rod transmits vibrations to the ruler on which it is mounted, allowing quick and optimal leveling, smoothing, leveling and compaction of the concrete for floors. The practical double handlebar with ergonomic knobs on which it is mounted allows the operator to work with precision and easily standing up without tiring the back; the machinery for making the concrete vibrate is equipped with an accelerator on the handlebar and anti-vibration pads that protect the paver's arms from excessive stress. The comfortable handle makes the Isoplam dragonfly easy to move and transport, while the stand allows you to park the vibrating straight edge with stability. The Isoplam cement leveling machine isequipped with a lightweight (weighing only 13 kg) Honda GX-35 4-stroke petrol engine which guarantees
optimal vibration with blades up to 4 meters.
LIGHTWEIGHT CONCRETE VIBRATING SCREED
Engine: Honda GX35 4 Stroke
Power HP: 1.5
Weight KG: 12.7

CONCRETE VIBRATING SCREED/UNI SCREED

CRTEK-900/836C
RIDE-ON POWER TROWELS FROM FLEXTOOL BRING INNOVATION TO THE CONCRETE INDUSTRY
The TEKVIBE Ride-On Power Trowel by TEKMENS Construction Supplies has created excitement amongst the concrete industry.
CRTEK900 Ride-On Power
Trowel is easy to operate and highly productive in floating and finishing large concrete slabs and super flat floors.
Powered by an electric start v twin 35hp motor, CRTEK900 produces power and torque to finish large slabs in a shorter amount of time. Engineered to withstand the complex demands working with concrete, TEKVIBE products are built to last.

RIDE ON TROWEL MACHINE

COMPACTORS

TEKVIBE Range of Reversible Plate Compactors feature the Dual-Directional Compaction Solutions for job sites with various weight-class and different baseplate sizes to choose from. The cast iron base-plate is designed to provide excellent stability during operation, and to ensure smooth forward and reverse motion. They come with engine options for all kinds of work conditions to deliver maximum compaction force and productivity.
TEKVIBE Reversible Plate Compactors have excellent compaction force for backfill footings, foundations, trenches.
Also, the compaction of base-material for driveways, side-walks and in confined area.

REVERSIBLE PLATE COMPACTOR

Twin-Drum Walk-Behind Roller comes with hydrostatic drive system. The TEK650 has a high compaction force but is also compact with well positioned controls making it easy to operate. Suitable for a wide range of soil and asphalt compaction applications. The Twin-Drum Walk -Behind Roller comes with hydrostatic drive system. The TEK650 has a high compaction force but it also compacts with well positioned control making it easy to operate. Suitable for a wide range of soil asphalt compaction applications.

Model Engine
Power
(hp/kW) Frequency
(vpm) Forward
Travel
Speed
(km/hr) Reverse
Travel
Speed
(km/hr) (kN
Force) Drum
Width
(mm) Starting system Dimensions (mm) Weight
(kg)
W H L
TEK660RL Loncin
D440F
9.6 / 6.9 3300 &gt; 3.9 &gt; 2.1 20 650 Electric with
Recoil 700 1093 2600 640
TEK660RL Yanmar
L100N
10 / 7.4 3300 &gt; 3.9 &gt; 2.1 20 650 Electric with
Recoil 700 1093 2600 645
TEK760RL Loncin
D440F
9.6 / 6.9 3300 &gt; 3.9 &gt; 2.1 20 650 Electric with
Recoil 700 1093 2600 740

ROLLER COMPACTOR

A heavy duty vibrating plate used for quick and reliable compaction of
sand, gravel, hardcore, paving and road surfacing. Ideal for general site use
as well as DIY preparation of patios and driveways. A rubber base plate
is available for block paving work.

PLATE COMPACTOR (STANDARD) – PETROL / DIESEL

CONCRETE MIXERS

The cement mixers are building machines with the purpose of kneading and mixing various components and are then used in construction sites. These are composed of a drum where inside there are arms that actas mixers where materials like water, sand gravel, binders, mortar & concrete are mixed. The machine can be equipped with electric engine or combustion engine like Diesel or Petrol accordingly to the specific needs of the user, which allow the rotation of the arms for mixing and drum emptying. In some models are provided castors with wheel kit of trailer to be inserted into the mixer

CONCRETE MIXERS - ELECTRIC / GASOLINE

Cement mixer for small building sites or refurbishment supplied in cardboard box

MINI MIXERS - ELECTRIC

STEEL REBAR BENDING & CUTTING MACHINE

The PORTABLE REBAR BENDING MACHINE is available in two different line: the Standard one and the Evolution one. The PORTABLE
REBAR BENDING MACHINE for concrete reinforcing steel rods are the result of years of experience.
【PURE COOPER MOTOR】-Pure copper motor runs quietly (low noise) and is only on while bending is in progress, preventing unnecessary wear. Besides, a copper motor can extend this rebar bender’s operating life to a large extent.
【STABLE PERFORMANCE-This portable rebar bender can offer excellent performance, helping save valuable person-hours by bending rebar up to 5/8” (#5) grade 60 from 0-130 degrees in within 5 seconds.
【SOLID MACHINE BODY】-Study and durable machine body and head can stand super-hard rebar with strong clamping force, which can help to reduce the waste of steel rebar.

PORTABLE REBAR BENDING MACHINE

Special order 1DBR80 bend die available upon request. It measure 1 3/4” wide Notes: For In-place bending applications the bending head pictured to the left needs to be raised at least 1.5” o the surface of the concrete in order to make a complete 90 degree bend. The minimum height above the concrete surface in which a bend can be made is 6” or 152.5 mm.

TEKVIBE bending machines are solid, designed for high productivity. They can be used from both sides, according to the convenience of the user. Gears and pinions in special hardened steel constantly work in oil bath in the sturdy gearbox. The electric panel “Telemecanique” is contained in a metallic box with protection IP54, therefore prevented from the penetration of dust and damp. Our goal is to give customers the best service in both sale and after-sales giving answers and shipping spare parts orders in very short time.
Different models available: Standard line : B42 / B52 /
Different models available: TEK line : B34 / B38 / B44 /

REBAR BENDING MACHINE

The REBAR CUTTING MACHINE is available in two different line: the Standard one and the Evolution one. The Rebar CUTTING MACHINE
for concrete reinforcing steel rods are the result of years of experience.
Different models available: Standard line: C42 / C52 / C55
Different models available: TEK line: C34 / C38 / C44 / C54 / C56 / C74

BLOCK CUTTING MACHINE / FLOOR SAWS

The PROF 600 masonry block saw is a solid, precise machine, extremely compact and versatile. Much lighter than a normal block cutter. Direct drive system: saw cutting disc is mounted on the motor shaft with direct transmission of the motor power to the
blade. Designed for the building site, it is suitable for cutting blocks of concrete, natural stone, bricks, Poroton and other materials used in the construction sector. It cuts with the head fixed and advancement of the carriage. Designed for blades of
Ø600 mm.Equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc forcooling. The tank is emptied by opening the draining cap. Folding legs to facilitate
transport.

BLOCK CUTTING MACHINE

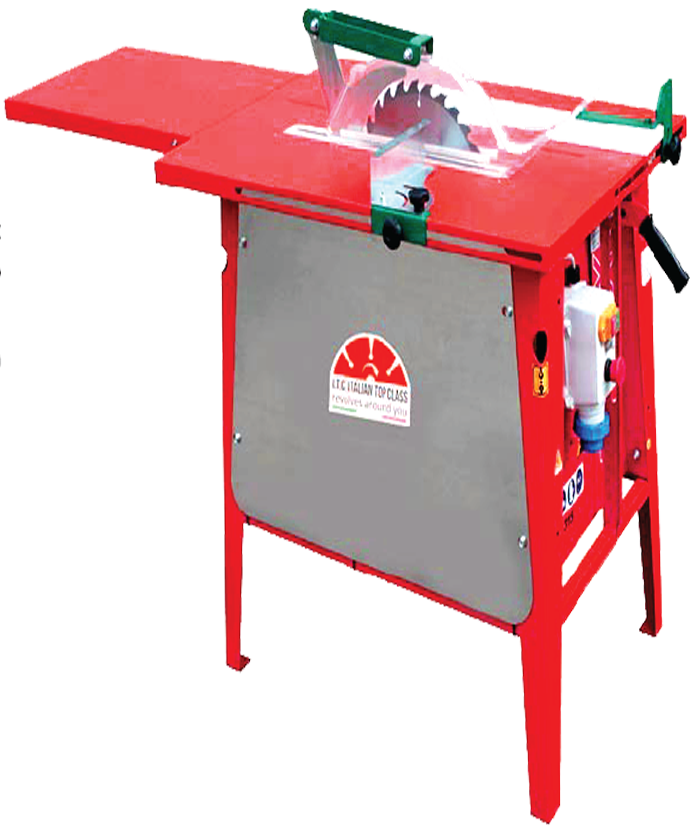

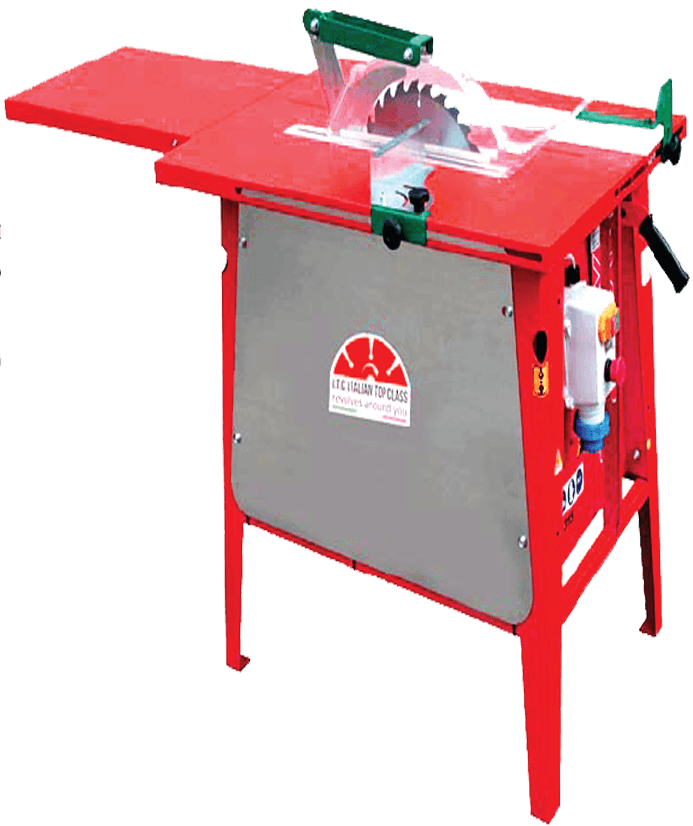

MANGUSTA bench saws are devised and designed to cut wood, chipboard, plyand building site planks and are excellent for all carpentry work and hobbyists.Motor with direct or belt transmission. The blade is equipped with a sheet metal protection hood. There is a magneto-thermal switch with release coil and immediate arrest button.
ACCESSORIES SUPPLIED
Blade In Widia, Instruction Manual, Openable Side Table, Set Of Wrenches, Side Stop.
OPTIONALS
Supplementary Blade In Widia

TABLE SAW MACHINE

ITC manual floor saws are tough, compact and easy to handle, designed for companies involved in road works, the maintenance of carriageways and the laying of pipes beneath the road covering. Ideal for cutting asphalt, road surfaces, cement and reinforced concrete, and for creating expansion joints on continuous surfaces. Work proceeds by pushing. Depth of cut is set manually with a flywheel. A protective blade cover ensures the operator’s safety during cutting operations. Machines available with petrol or diesel engine. Adjustable grip. The plastic water tank renders the machine lighter.
ACCESSORIES SUPPLIED
Instruction manual, set of wrenches, tank (30 litres).
OPTIONALS
Diamond blades

FLOOR SAW MACHINE

The FAST is an electric tile cutter, solid and light, ideal for intensive cutting of ceramic tiles, single-fired bricks, Grès porcelain stone-wares and for occasional cutting of natural stones.The motor unit runs on a steel shaft by means of linear recirculating ball bearings with anti-dust protection. The cutting head is pivoting and can be locked, with a handle, at the desired height. The machine is designed for cuts from 90° to 45° and can function with a diamond blades of Ø200 Ø250 mm. Available only in single-phase version. Equipped with a cutting disc cooling system: there is a water circulation pump in the collection tank. Folding legs to facilitate transport.
ACCESSORIES SUPPLIED
Instruction manual, set of wrenches, side stop, wheel kit for transport.
OPTIONALS
Diamond blades, extension side table in sheet metal 55×45 cm, goniometer fence, precision laser.

ELECTRIC TILE SAW MACHINE

PNEUMATIC SCABBLERS

TEKVIBE TEK-SH11 is designed for thick floor coating removal, containment & concrete surface preparation TEKVIBE TEK-SH11 minimizes substrate damage which prevents damaging water ingress which may freeze & cause cracking. This concrete floor scabbler is capable of removing concrete up to 1/4 inch in a single pass which makes it perfect for the removal of radioactive & PCB contaminated concrete. Cruciform heads (optional) are available to use for material reduction and a smoother finish.
SPECIFICATIONS
TEK-SH11
Type Pneumatic
Air Consumption(CFM) 55
Blows per Min(BPM) 2200X11
Length(MM) 813
Working Width(MM) 250
Working Pressure(Bar/PSI) 6 /90
Air Hose(MM) 19
Weight (kg) 70

11 HEAD POLE SCABBLER

The TEKVIBE Air Scaling Hammer / Air Scabblers TEK-SH3 with Triple Heads can be used to remove
rust and paint debris on ships, iron frames, bridges and boilers. It can also be used to chisel.
SPECIFICATIONS
TEK-SH3
Type Pneumatic
Air Consumption(CFM) 25
Blows per Min(BPM) 2800x3
Length(MM) 540
Working Pressure(Bar/PSI) 6/90
Air Hose(MM) 19
Weight (kg) 4.5

TRIPLE HEAD SCABBLER

The TEKVIBE Air Scaling Hammer / Air Scabblers TEK-SH1 with Triple Heads can be used to remove
rust and paint debris on ships, iron frames, bridges and boilers. It can also be used to chisel.
SPECIFICATIONS
TEK-SH1
Type Pneumatic
Air Consumption(CFM) 5
Blows per Min(BPM) 2800
Length(MM) 540
Working Pressure(Bar/PSI) 6/90
Air Hose(MM) 19
Weight (kg) 2.8

SINGLE HEAD SCABBLER

FLOOR GRINDER & SCARIFIER MACHINE

Designed for use on all concrete and asphalt surfaces, the Flextool Scarifier TEK-FSP200 is engineered around durability and efficiency. With a 200 mm scarifying path, Honda GX160 4-stroke engine and rigid, heavy-weighted chassis design, the
FSP-200 can roughen concrete surfaces and enable fast removal of thicker difficult film of coating, such as epoxy, to achieve successful bonding between the surface and binding material. The Flextool Scarifier TEK-FSP200 also comes with a tungsten
carbide tip cutter cage.

FLOOR SCARIFIER MACHINE

The TEK-JS5 is designed for medium to heavy duty application & floor
preparation. This highly effective and powerful machine which is widely used
for new coatings preparation, Removal of Existing coatings and adhesives,
polishing of concretes, Repairing of old and damaged concretes.

FLOOR GRINDER MACHINE

DIAMOND & POLISHING TOOLS

HTC TYPE GRINDING SEGMENTS – 16#- 80# GRIT

CONTEC TYPE GRINDING SEGMENTS – 16#- 80# GRITS

BLASTRAC TYPE GRINDING SEGMENTS – 16#- 80# GRIT

SCANMASKIN TYPE GRINDING SEGMENTS – 16#- 80# GRITS

TWIN HEAD 250MM GRINDING SEGMENTS - 16#-80# GRIT

STEEL FABRICATIONS & SAFETY HANDLING EQUIPMENTS

The TEKLIFT is a crane loading platform used for moving equipment and materials efficient in and out of structures during construction.The Fixed Flush platform is ideal for situations where reduced head room places working height at a premium, and where maximumclearance is essential. The deck of the platform is suspended from the base of the main load-bearing beam, giving a true level, or ‘flush’ transition from the floor of the structure to the loading area.

LOADING PLATFORM(FIXED/RETRACTABLE)

Note: We can fabricate all customize sizes as per client drawings

TEKLIFT manufactures Lifting Gas Cylinder Racks that come in standard and custom-made sizes. Our Racks are fabricated according to certified drawings and supplied with TUV Safety Certificate Lifting Cylinder Rack is made of fully welded steel which can be used for both industrial and construction cylinder stand. It can store acetylene, argon, butane, carbon dioxide (CO2), helium, hydrogen and
nitrogen cylinders. Available in various cylinder capacities. 100% safe working structure.
Note: We can fabricate all customize sizes as per client drawings

GAS CYLINDER SHIFTING RACKS

The Work baskets are used for conveying personnel with tools and work material to a work location by crane. The unit consists of a workbasket supported from crane lifting lugs. The basket can be entered from the side via a gate. These units can be built to carry
2-4 men and their equipment in accordance with safety Standards. Harness attachment points are located on the top of the guard framing.

MAN LIFTING CAGE

TEK LIFT Lifting-slings offer a wide range of emergency man riding Baskets for use with Fork Lift Trucks and Cranes. Man riding Baskets are a safe way of transporting personnel to restricted areas. We offer a range of access platforms to suit all environments. Available as 1 man, 2 man, 4 man, 6 man & 8 man capacities, in material options of Aluminum, Steel & Stainless Steel Man-Riding Baskets. Rescue cages are also available; these are designed for the safe evacuation of personnel from restricted access areas, suitable for crane transportation or forks. Rescue Cages come complete with stretcher that can be secured to the basket ensuring the safe rescue & extraction.

EMERGENCY RESCUE CAGE

TEK LIFT Block Lifting Cage are built in accordance to the industry safety standard which meets tough construction site conditions with the assurance of third party safety certificate Lift safely. The Brick & Blocks Lifting Cage has been specifically
designed for the hoisting of building materials with an overhead crane lifting point.

BLOCK LIFTING CAGE

These material buckets are used for transport of heavy material such as sand ,gravel, metal and sla g. The bucket comes standard with
strong frame ,reasonable mechanical desi gn for lifting lugs. Our skips are fabricated according to certified drawings and supplied with TUV Safety Certificate. Skip Bucket is manufactured using mild steel plate to allow transportation of heavy materials such as sand, gravel, excavation waste and scrap metal. For loading and unloading of material at various floors and levels of the Construction site from Tower Cranes directly.100% safe working structure

MATERIAL SHIFTING BUCKET

High quality concrete bucket with rubber hose ,pull rope for opening discharge gate and closed automatically by spring . Length rubber hose 2 metres, diameter 200mm.
Suitable for Crane Manual operation is lifted with a crane.
Tank capacity available of 500, 1000, 2000 & 5000 liters.
Equipped with protection mechanism against spontaneous opening (spring)
Equipped with handle for opening the concrete supply
Equipped with handle for opening the concrete supply

MODEL	Blade/Hole Dia(MM)	Depth of cut(MM)	Power (KW)	Speed (RPM)	Voltage (V/Hz)	Dimensions (MM)	Weight(kg)
TEK -BS350	350/25.4	230	2.2	2850	230/400/50 -60	100X80X100	85
TEK -BS450	450/25.4	230	3	2850	400/50 -60	110X80X105	110
